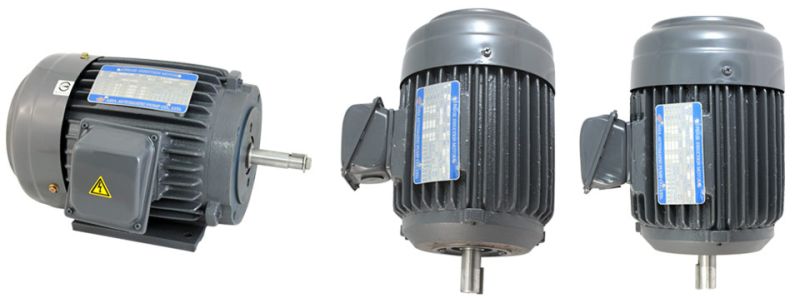

EVERGUSH Electric Motor (IEC Standard)

EVERGUSH IEC standard Electric Motor Brochure

Features

  1. IEC Standard motor,compatible for other International IEC standard motors.
  2. Low noise,less vibration-Compact construction,fine assembly and process, and precise dynamic balance procedure.
  3. Adopting high-level insulation material on motor coils, to extend life time and make the motor more durable.
  4. Light weight and compact design for space saving.

Specification

  1. Enclosed ,fan cooled,squirrel cage high efficiency IE3 motor. (IE4 is available upon special request, but the lead time is longer).
  2. Motor Type: Horizontal-HFEH seires / Vertical-HFEV series
  3. Output range:1HP~75HP (0.75KW~55KW)
  4. Pole: 2P /4P
  5. Motor Insulation: F
  6. Motor Protection: IP54 class.
  7. Voltage: 3phase 220V/380V/440V/660V (Special voltage is available upon request.)
  8. Frequency: 50Hz or 60Hz
  9. Safety Factor(S.F.):1.0 or 1.15
  10. Ambient Temp.: MAX.40℃.

EVERGUSH Motor Lab.
