EPT Diaphragm Pressure Tank

EVERGUSH Diaphragm(Membrane) type Pressure tank is an essential part of a pressurized water system that provides water pressure at a set range. The tank stores supplemental water between diaphragm and liner, and the pressurized air chamber is able to create a supply circle.This process can reduce the number of pump startups required to keep the system pressure within the set range.
The tension of diaphragm maintains water pressure within the system, ensuring proper operation of the dishwasher and washing machine, and robust flow for showering and bathing.
Appropriate size pumps and appropriate size pressure tanks will work together as a team to meet customer needs.

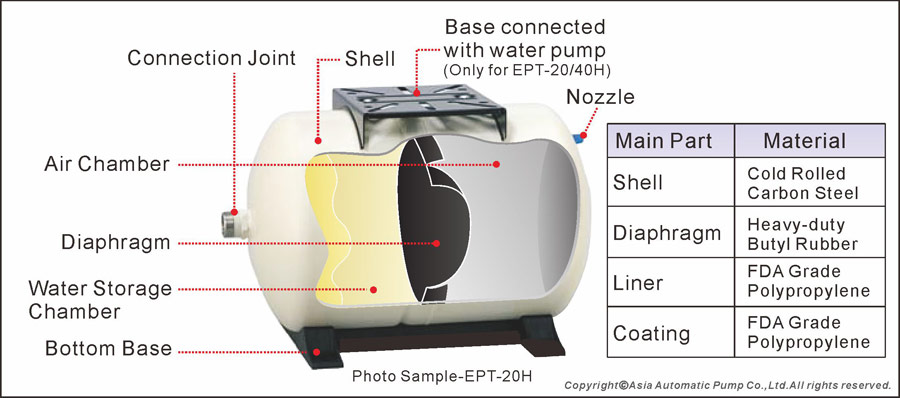

Diaphragm design pressure tank.The Inside construction is divided into air chamber and water storage chamber.

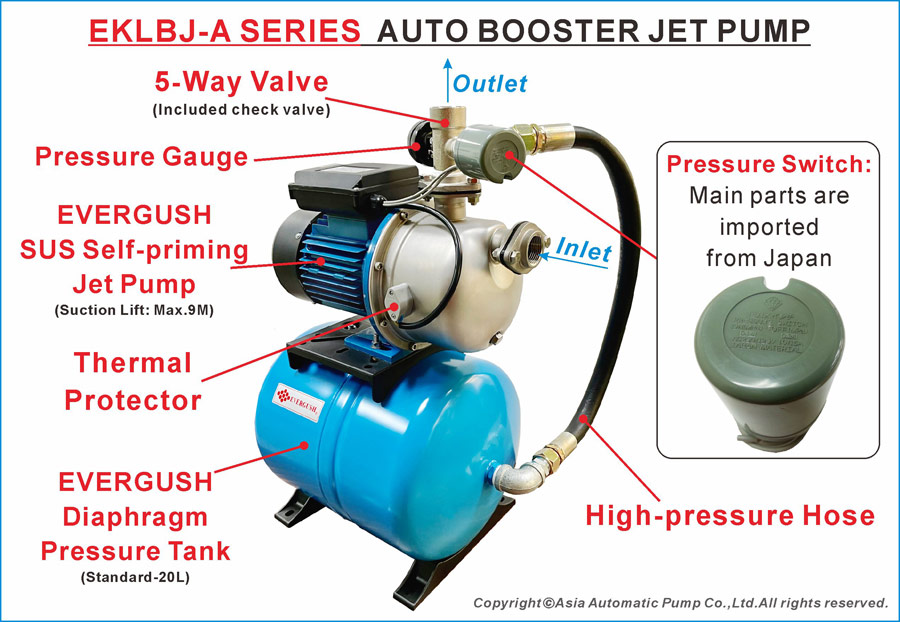

It's suitable to connect with EVERGUSH water pump,control panel,piping,valves,etc. All are incorporated in one auto booster pump system.
