IL Vertical In-Line Centrifugal Pump

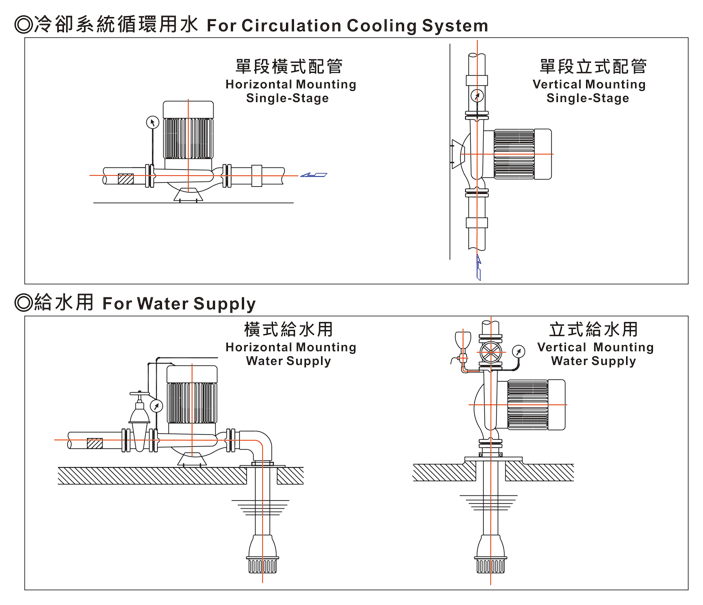

  • Vertical installation
  • Vertical installation
  • Horizontal installation
  • UP-IL CUSTOMIZED
    Inverter Booster Pump System (Duplex Run)
    IL Vertical In-line Centrifugal Pump Catalog (60HZ)
    IL Verticla In-line Centrifugal Pump Manual

    Features

    1. The motor and pump are coaxial conjoined for eliminating fluctuations.
    2. Durable mechanical seal prevents from leakage and keeps long life.
    3. Compact & robust structure for saving space and for easy installation.
    4. Special volute design for low noise operation and great performance.
    5. Vertical design for space-saving.

    Applications

    1. Water Circulation for air conditioning systems,chiller,cooling tower.
    2. Broad range of industrial applications.
    3. Cooling Tower; Open loop and close loop water circuit systems.
    4. Water Supply for Booster systems.
    5. Water supply and disposal for households

    Operating Conditions

    1. Ambient Temperature: Max.40℃
    2. Liquid Temperature: 0~60℃ Standard
      If liquid temperature is over 60 ℃, M.seals need to be replaced for viton material.
    3. Working Pressure : Max.10 BAR.
    4. Clean water or liquids without corrosive chemicals and abrasives.

    Specifications

    1. Power: 1/2HP~40HP
    2. Motor Protection: IP54
    3. Insulation: E,B,F
    4. Pole: 2P,4P
    5. Voltage:
      1phase 110/220V*60HZ(1/2hp~2hp); 3phase 220/380/440/660*60HZ
      50HZ specifications are available per request.
    6. Suction/Discharge: 1” ~ 8”
    7. Max.Head: 85M
    8. Max.Capacity: 5,400 LPM (324M³/HR)
