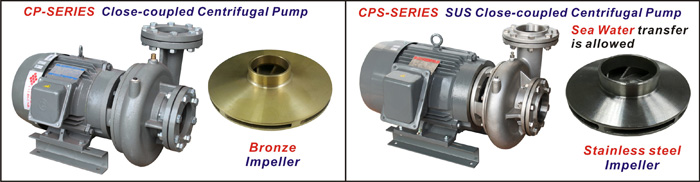

CP Close-coupled Centrifugal Pumps

  • CP (Cast Iron Pump)
    10~30HP(2Pole)
  • CP (Cast Iron Pump)
    1~3HP(2Pole)
  • CP (Cast Iron Pump)
    40~50HP(4Pole)
  • CP (Cast Iron Pump)
    20~30HP(4Pole)
  • CP (Cast Iron Pump)
    View from different angles
  • CP (Cast Iron Pump)
    View from different angles
    • CPS (Stainless Steel Pump)
      1~3HP(2Pole)
    • CPS (Stainless Steel Pump)
      5~40HP(2 or 4 Pole)
    • CPS (Stainless Steel Pump)
      Customized-With Inverter(VFD) Motor
    • CPS (Stainless Steel Pump)
      Customized-With IP55 Motor
      CP Close-coupled Centrifugal Pump Brochure(50HZ)
      CP Close-coupled Centrifugal Pump Brochure(60HZ)
      CP Close-coupled Centrifugal Pump Instruction Manual

      Features

      1. The motor and pump are coaxial conjoined for eliminating fluctuations.
      2. Durable mechanical seal prevents from leakage and keeps long life.
      3. Compact & robust structure for saving space and for easy installation.
      4. Special volute design for low noise operation and great performance.

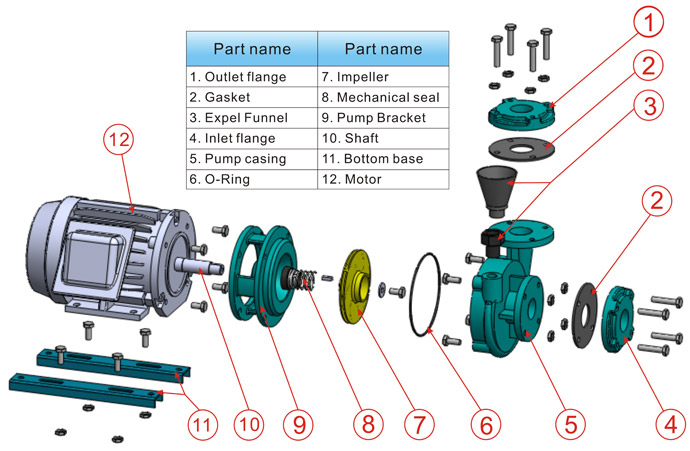

        Exploded View

        Applications

        1. Heating and cooling water circulation.
        2. Broad range of industrial applications.
        3. Open loop and close loop water circuit systems.
        4. Water supply and pressure boosting systems.
        5. Process water for paper mill, brewery, refinery.
        6. Boiler feed, washing and cleaning system.
        7. Water supply and disposal for households.
        8. Water circulation for cooling tower, air-condition facilities.
        9. Water supply or circulation for swimming pools System
        10. For booster pump system or VFD-controlled constant pressure pump system use.

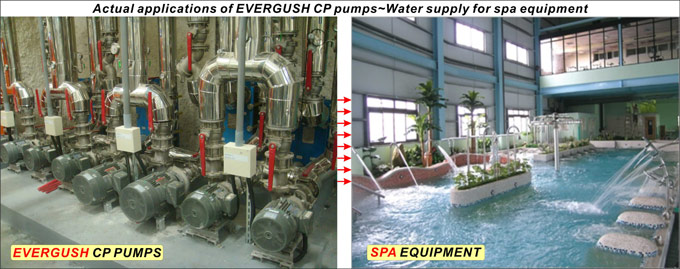

        Water Supply For Spa Equipment

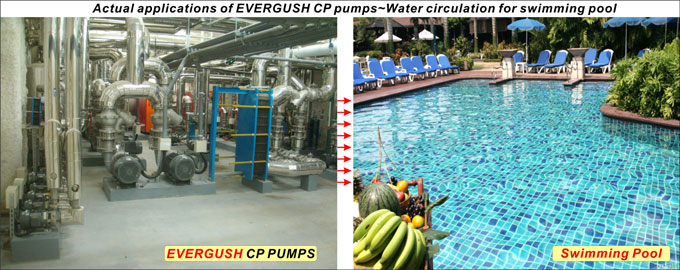

        Water Circulation For Swimming Pool

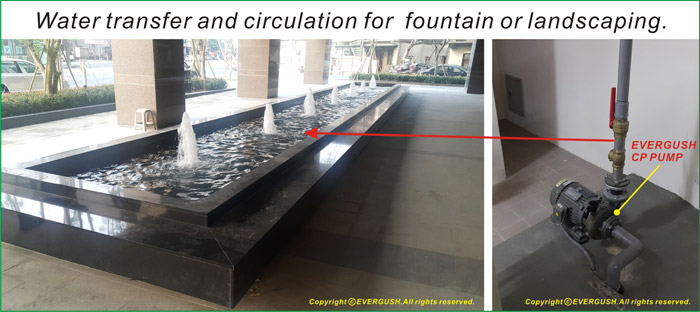

        Water Circulation for Fountain and Landscaping

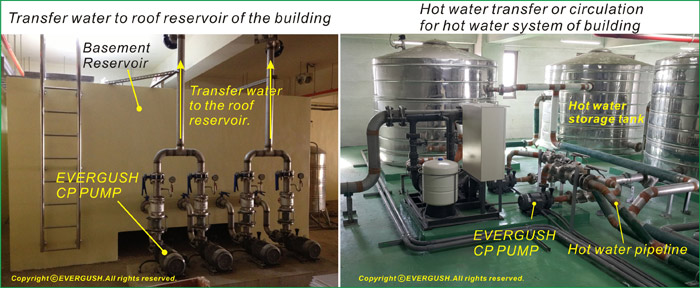

        Water Transfer For the Building

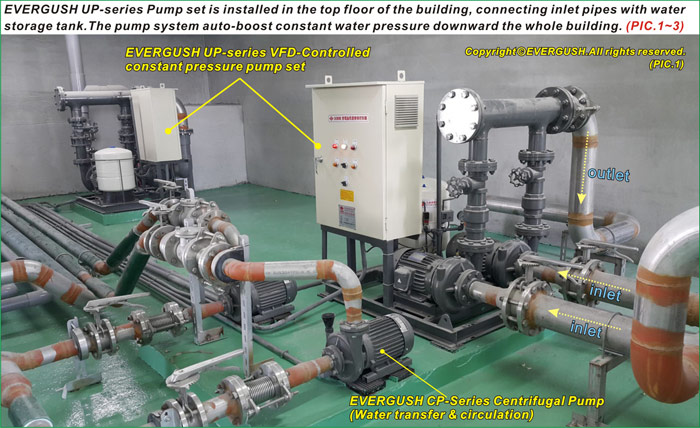

        As the Main Pump of the Booster Pump System

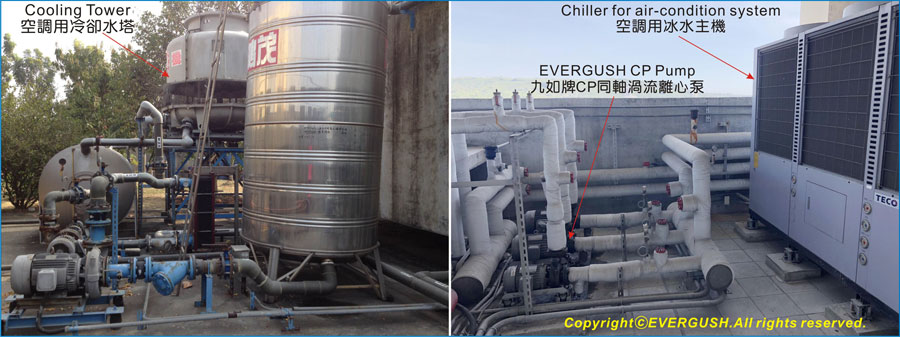

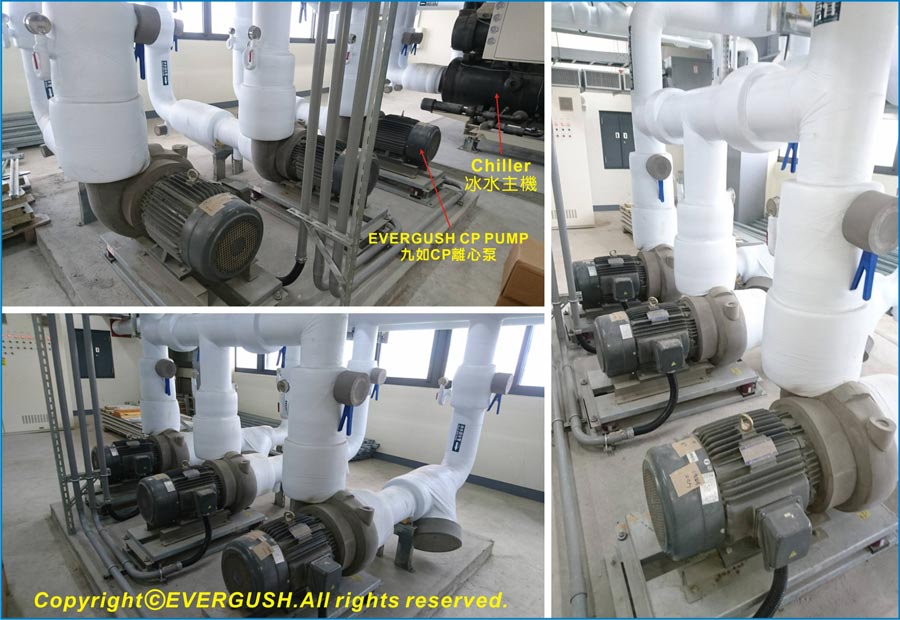

        Water Circulation For Chiller-1
        Water Circulation For Chiller-2

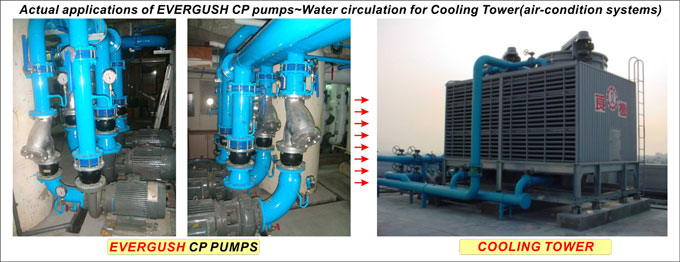

        Water Circulation For Cooling Tower-1

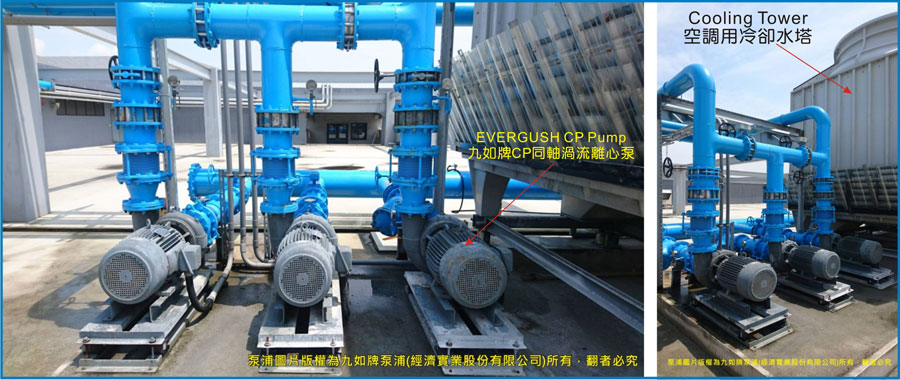

        Water Circulation For Cooling Tower-2
        Water Circulation For Cooling Tower-3

        Operating Conditions

        1.Ambient temperature:Max.40℃.
        2.Liquid temperature: Standard Type: 1~60℃.
        Hot water Type: Max.80℃.
        ( Required to replace for Viton mechanical seal)
        3.Working Pressure: Max. 10Kg/cm²
        4. Normal water or other clean non-corrosive liquids without abrasives.

        Specifications

        1. Output:0.5~150HP (0.37~110KW)*60Hz/50Hz
        2. Motor Spec.: IP54~IP55 / Insulation E,B,F
        3. SFF:1.0~1.15
        4. Voltage: 1Phase 110V/220V/240V (0.5HP~2HP ONLY); 3Phase 220V/380V/415V/440V/660V
        5. Frequency: 50Hz,60Hz
        6. Pole: 2P ; 4P
          IEC Standard, Enclosed Fan Cooled motor. IE1,IE3,IE4 High Efficiency Motor.
        7. Max. Head: 80M
        8. Max. Capacity: 960 M³/HR (16000LPM)
        9. Suction Lift: Max. 4M
